How to Use the New Project Wizard

Select File|Project|New Project to open the wizard.  The New Project Wizard: Welcome screen displays.

Use the existing emulator connection, or select Add/Edit to create a new emulator connection (USB or TCP/IP).

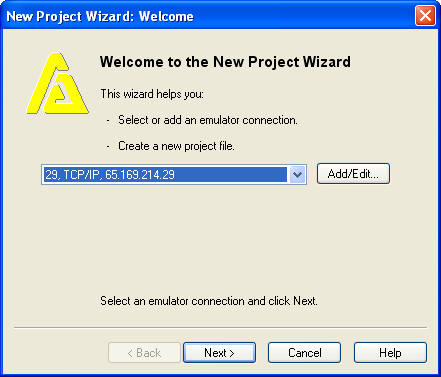

New Project Wizard: Welcome dialog box.

Click the Next button.  The New Project Wizard: Project File screen displays.

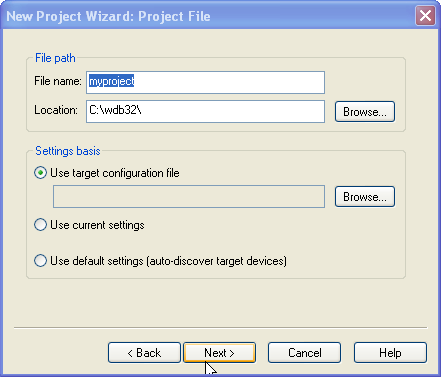

New Project Wizard: Project File dialog box

File Path Section

Filename.  Enter the name of the project file

Location. Enter the location for the project file, or press the Browse button to navigate to the location

Settings Basis Section

Select a Settings basis:

Use target configuration file.  Select this option to create a new project file from a target configuration file, specify it’s location.

Use current settings. Select this option to create a new project file from the current SourcePoint settings.  All window locations will be remembered in the new project file.

Use default settings (auto discover target devices).  Select this option to create a new project file with default settings.  The emulator will automatically scan the target to determine the devices on the JTAG chain.

Click the Next button.  The New Project Wizard: Completing screen displays:

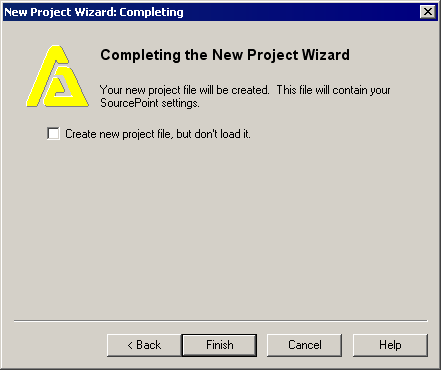

New Project Wizard: Completing dialog box

To exit the New Project Wizard and open the new project file, select Finish.  If you wish to create the new project file without automatically loading it, use the checkbox above.
