The MinnowBoard Chronicles Episode 37: More Explorations in SMM

In the last episode of the Chronicles, I explored System Management Mode on the MinnowBoard. SourcePoint helped me see its basic operation, but only in object code format. Can I learn more by exploring the source code?

I learned from last time that the easiest way to enter SMM is to generate an SMI via the EFI shell, by typing in the command:

mm b2 0 -io

and then hitting a keystroke, and then hitting “Go” with the SMM entry breakpoint set. The shell uses SMM to process keystrokes in real mode:

MNW SMM entry hit

We stop again at the familiar instruction

MOV BX, 804d

That we saw last time, the entry point to the keyboard SMI handler.

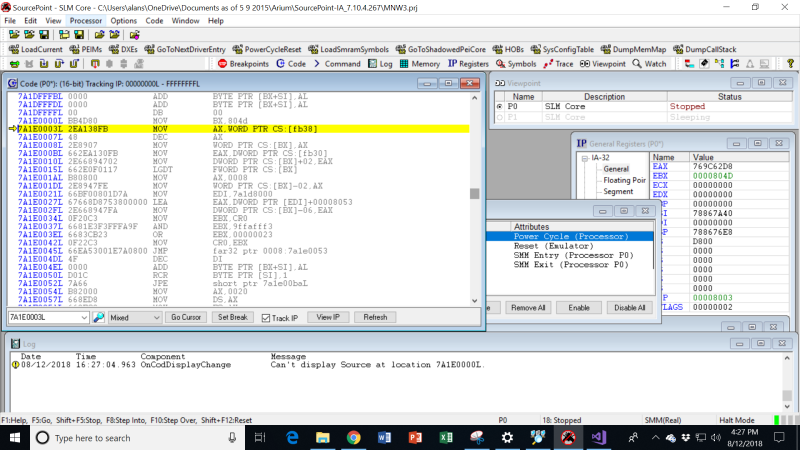

Is it possible to see the source code here? I clicked on the “LoadCurrent” macro button, to display the source, but alas, it does not display: an error message shows up in the Log window, “Can’t display source at location 7A1E000L”:

MNW cant load source at SMM Entry

As I might have expected, the MinnowBoard firmware build doesn’t seem to include the source code for the SMI dispatch routines.

Rather than just giving up, I persisted a little, and came up with (maybe) a stroke of luck: I used SourcePoint to single-step through the code, down to address 7A1E0045L with the JMP statement, that ultimately took me to address 7A1E9953, at which point I hit the LoadCurrent button again, and got some interesting output in the Log window:

08/12/2018 16:27:04.963 OnCodDisplayChange        Can't display Source at location 7A1E0000L.

08/12/2018 16:28:30.849 loadMacro                 Loading User Defined Macro #0: C:\Users\alans\OneDrive\Documents as of 5 9 2015\Arium\SourcePoint-IA_7.10.4.267\Macros\EFI\button\EfiBtn0_Chk.mac…

08/12/2018 16:28:30.850 Images.mac:LoadSingleImag LoadSingleImage(0008:7A1E0053)

08/12/2018 16:28:30.850 Images.mac:LoadSingleImag starting image search at 7A1E0053L

08/12/2018 16:28:30.850 Images.mac:LoadSingleImag aligning pointer 7A1E0053L on 4K boundary

08/12/2018 16:28:30.850 Primitives.mac:_alignpoin debug _alignpointer(): aligning 7A1E0053L

08/12/2018 16:28:30.850 Primitives.mac:_alignpoin debug _alignpointer(): Adjust = 0xfad

08/12/2018 16:28:30.850 Images.mac:LoadSingleImag aligned = 7A1E0000L

08/12/2018 16:28:30.850 Images.mac:LoadSingleImag starting aligned MZ/VZ search at 7A1E0000L

08/12/2018 16:28:30.939 Images.mac:LoadSingleImag found MZ at 7A1B7000L

08/12/2018 16:28:30.939 Images.mac:LoadSingleImag COFF file header at 7A1B70CCL

08/12/2018 16:28:30.940 Images.mac:LoadSingleImag number of sections         = 6

08/12/2018 16:28:30.941 Images.mac:LoadSingleImag COFF optional header at 7A1B70E0L

08/12/2018 16:28:30.941 Images.mac:LoadSingleImag BaseOfCode                 = 7A1B7000L

08/12/2018 16:28:30.942 Images.mac:LoadSingleImag AddressOfEntryPoint        = 7A1B72FCL

08/12/2018 16:28:30.945 Images.mac:LoadSingleImag NumberOfRvaAndSizes offset = 0x6C

08/12/2018 16:28:30.945 Images.mac:LoadSingleImag DataDirectories offset     = 0x70

08/12/2018 16:28:30.947 Images.mac:LoadSingleImag DEBUG: directory offset     = 0x4F40

08/12/2018 16:28:30.947 Images.mac:LoadSingleImag checking for codeview (type=2) at 7A1BBF4CL

08/12/2018 16:28:30.950 Images.mac:LoadSingleImag checking for CodeView signature at 7A1BCE40L

08/12/2018 16:28:30.952 Images.mac:LoadSingleImag found PE32 RSDS signature at 0x7A1BCE40L

08/12/2018 16:28:30.969 Images.mac:LoadSingleImag FILENAME @ 7A1BCE58L, LENGTH = 187, STRING = c:\myworkspace\Build\Vlv2TbltDevicePkg\DEBUG_VS2012x86\X64\Vlv2TbltDevicePkg\SmmSwDispatch2OnSmmSwDispatchThunk\SmmSwDispatch2OnSmmSwDispatchThunk\DEBUG\SmmSwDispatch2OnSmmSwDispatchThunk.pdb

08/12/2018 16:28:30.973 Images.mac:_findFile      tPath = ""

08/12/2018 16:28:30.975 Images.mac:_fileExists    FileNameString = "c:\myworkspace\Build\Vlv2TbltDevicePkg\DEBUG_VS2012x86\X64\Vlv2TbltDevicePkg\SmmSwDispatch2OnSmmSwDispatchThunk\SmmSwDispatch2OnSmmSwDispatchThunk\DEBUG\SmmSwDispatch2OnSmmSwDispatchThunk.efi"

08/12/2018 16:28:30.979 load                      Loading EFI(PE) format

"c:\myworkspace\Build\Vlv2TbltDevicePkg\DEBUG_VS2012x86\X64\Vlv2TbltDevicePkg\SmmSwDispatch2OnSmmSwDispatchThunk\SmmSwDispatch2OnSmmSwDispatchThunk\DEBUG\SmmSwDispatch2OnSmmSwDispatchThunk.efi"

What does this all mean? Are some symbols are being loaded from the EFI(PE) format files? I need to look into the SmmSwDispatch2OnSmmSwDispatchThunk map file to learn more. Stay tuned!
